Synergy 2014+ Ram 2500 / 3500 Heavy Duty Front Sway Bar Links are a great option for your 2014 + Ram. The heavy duty forged design are much stronger and offer more wheel travel than the OE alternatives. These extended links will work with trucks from 0-6 Inches of lift and feature a spherical bushing to provide more misalignment. The end links are finished with a durable e-coating for maximum corrosion resistance.

Fitments:

2014+ Dodge Ram 2500 / 3500

Part #	Description
8715-01	Synergy Dodge 0-3" Lift Heavy Duty Sway Bar Links
8715-02	Synergy Dodge 3.5-6" Lift Heavy Duty Sway Bar Links

Benefits:

Spherical bushing and sealed tie rod end provides a direct linkage to axle
Available for 0-3" and 3.5-6" lifts
Bent for clearance of other suspension and axle components

Features:

Constructed from high quality 1020 CR Solid
Links are e-coated for corrosion resistance
Ends are clear zinc plated for maximum corrosion resistance
100% bolt on components assures an easy, trouble-free installation with the use of basic hand tools **
Made in USA

Min/Max Length:

Measured from center of the lower bolt hole to the flat on the adapter:

8715-01
- Minimum Collapsed: 7 1/2"
- Maximum Extended: 8 1/2"
8715-02
- Minimum Collapsed: 10 7/16"
- Maximum Extended: 11 3/8"

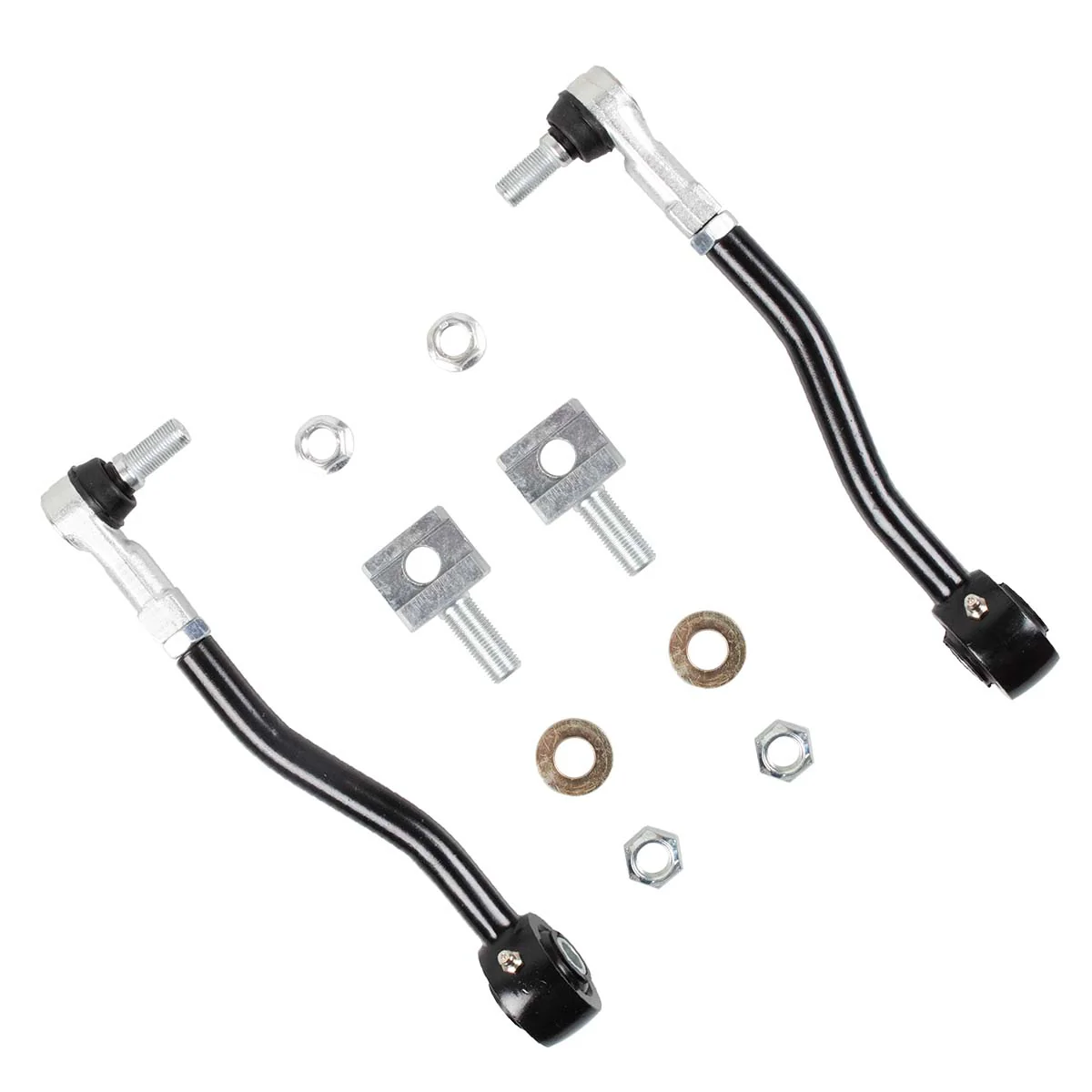

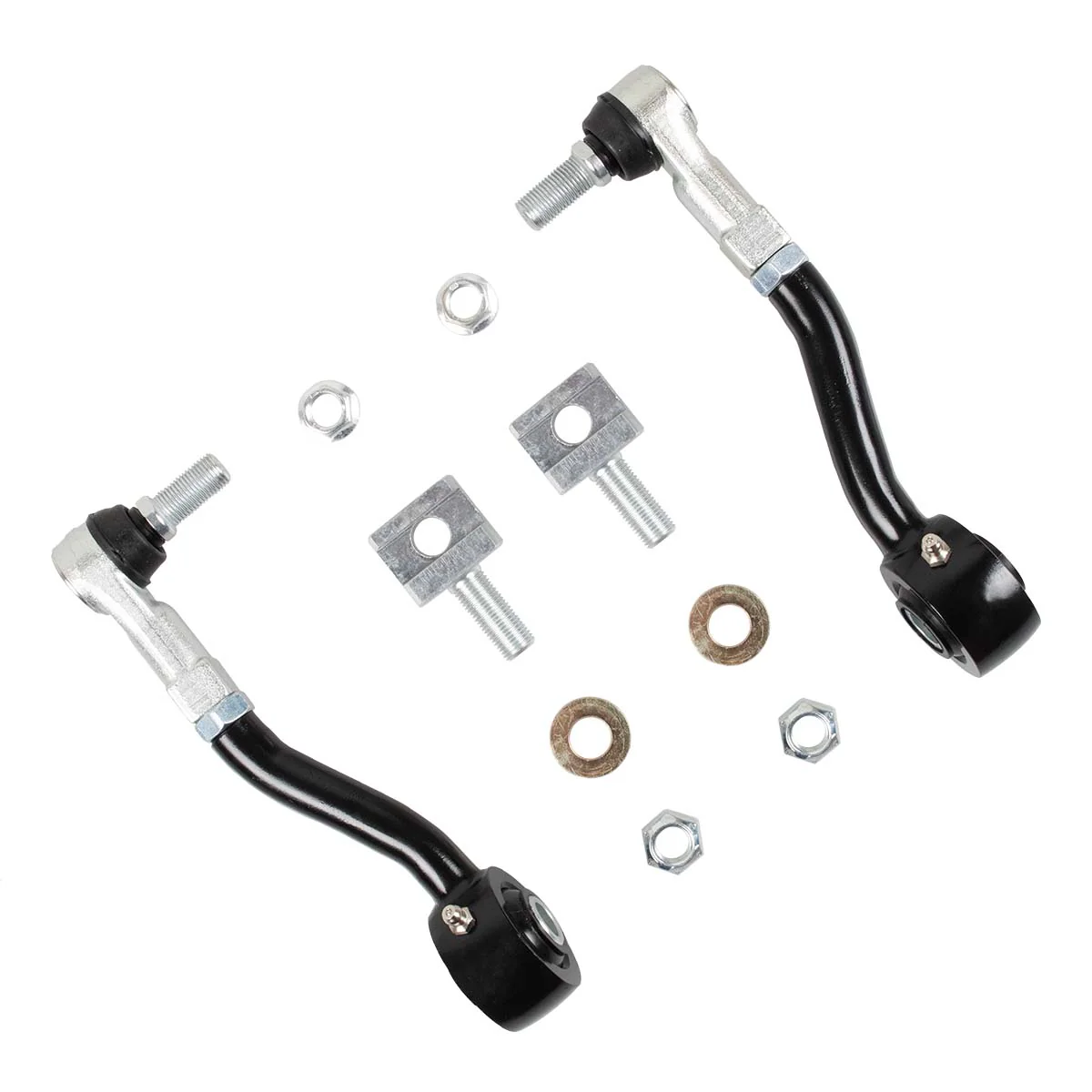

Includes:

(2) Sway bar links
(2) Sway bar link ends (sealed tie rod ends)
(2) ½"-12 UNC jam nuts
(2) 851501 stem top sway bar link adapter
(2) 5/8"-18 tapered nuts
(2) ½"-12 UNC x 3.0" long hex head bolt GR8
(2) ½"-12 UNC Stover nut
(4) ½" flat washer GR8

Installation Instructions
